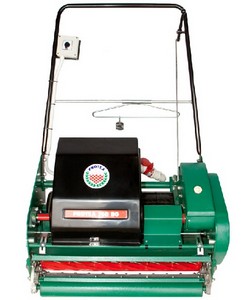

The BG 760 (30”) bowling green mower has been built in South Africa for over 30 years. It is also available in New Zealand and Australia.
Fitted with a powerful 1.5kw motor to give extra power for grooming and scarifying. The single phase motor is also fitted with a push button overload. If the motor is overloaded it will trip off.
A common problem is the oversetting of the cutting cylinder against the bottom blade. The reel should always be freewheeling when spun by hand.
Wait 15 minutes for the motor to cool down and look for any obstruction which made the motor trip off. You can now push back the over load button and start the motor again.
Because of the strong motor you have to use a heavy duty extension cable (2.5mm) The cable is 50 meter long.
The conventional 2 speed electric Bowling Green Mower comes with the following standard features:-
•Heavy duty 1.6kw motor with a manual overload push button.
•16 bladed cutting cylinder.
•Teasing brush.
•Self-
•Hinged motor cover for easy cleaning and adjusting.
•4 section rear roller. Each one is driven individual.
Optional extra:-
•Grooming reel.
•Pin type scarifier reel.
•50 meter heavy duty extension cable (2.5mm) with plugs.
•Transporter cradle
